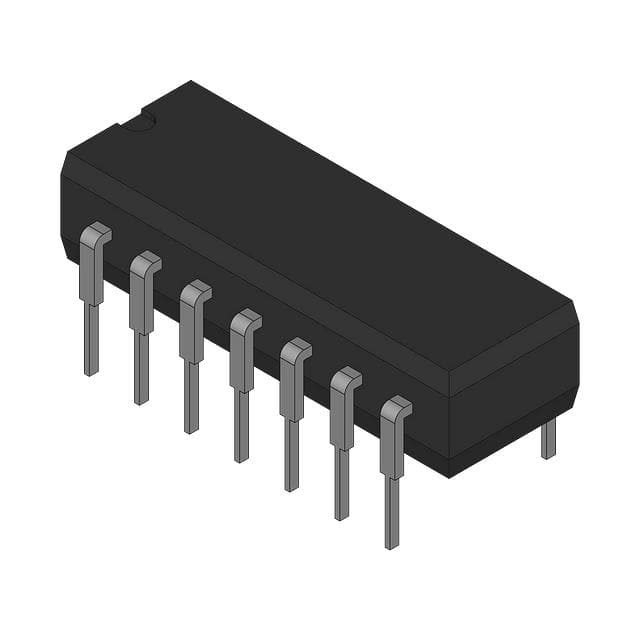

74LS54PC Image Image may be representation.
See specs for product details.
74LS54PCFairchild Semiconductor AND-OR-INVERT GATE, TTL, PDIP14
Part Number74LS54PC
Package14-DIP
ManufacturerFairchild (onsemi)
RoHs Status
Manufacturer Part NumberFairchild Semiconductor-74LS54PC
DescriptionAND-OR-INVERT GATE, TTL, PDIP14
In stock3958
Data sheet
Please click " QUICK RFQ " and provide your contact information,
or email us at [email protected].
We will respond promptly to your inquiry.
In stock: 3958 pcs Required fields are indicated by an asterisk ( * )

Please send RFQ, we will respond immediately.

  • Specifications
  • Product Details - 74LS54PC
  • 74LS54PC Tech Specifications
    Fairchild Semiconductor - 74LS54PC technical specifications, attributes, parameters and parts with similar specifications to Fairchild Semiconductor - 74LS54PC
    Manufacturer Fairchild (onsemi)
    Voltage - Supply 4.75V ~ 5.25V
    Supplier Device Package 14-PDIP
    Series 74LS
    Schmitt Trigger Input No
    Package / Case 14-DIP
    Package Bulk
    Output Type Single-Ended
    Operating Temperature 0°C ~ 70°C
    Number of Inputs 10 Input (3, 3, 2, 2)
    Number of Circuits 5
    Mounting Type Through Hole
    Logic Type AND/OR/INVERT Gate
    Current - Output High, Low -
    Base Product Number 74LS54
  • The74LS54PCis a Integrated Circuits (ICs) component, full developed and mass-produced by Fairchild Semiconductor manufacturer, subject to rigorous quality control and successfully meeting production standards. The product description is AND-OR-INVERT GATE, TTL, PDIP14 and it falls under the category of Logic - Gates and Inverters - Multi-Function, Configurable, with Manufacturer of Fairchild (onsemi) and Voltage - Supply of 4.75V ~ 5.25V and Supplier Device Package of 14-PDIP. Efficient purchasing through Fairchild-Stock.com. Here, you can find a wide variety of electronic components produced by manufacturers worldwide. If you do not find the information you are looking for, you can obtain more valuable information via email [email protected], such as stock quantities, special pricing, datasheets, and more details for 74LS54PC or order. We are always pleased to hear from you, so feel free to contact us at any time.

Product Comparison

Product Attribute 74LS54PC 74LS10PC 74LS21PC 74LVQ08SC
Part Number 74LS54PC 74LS10PC 74LS21PC 74LVQ08SC
Manufacturer Fairchild Semiconductor Fairchild Semiconductor Fairchild Semiconductor Fairchild Semiconductor
Operating Temperature 0°C ~ 70°C 0°C ~ 70°C - -40°C ~ 85°C
Supplier Device Package 14-PDIP 14-PDIP - 14-SOIC
Mounting Type Through Hole Through Hole - Surface Mount
Logic Type AND/OR/INVERT Gate NAND Gate - AND Gate
Series 74LS 74LS * 74LVQ
Base Product Number 74LS54 74LS10 74LS21 74LVQ08
Current - Output High, Low - - - 12mA, 12mA
Package Bulk Bulk Bulk Tube
Number of Inputs 10 Input (3, 3, 2, 2) 3 - 2
Package / Case 14-DIP 14-DIP - 14-SOIC (0.154", 3.90mm Width)
Number of Circuits 5 3 - 4
Schmitt Trigger Input No - - -
Output Type Single-Ended - - -
Voltage - Supply 4.75V ~ 5.25V 4.75V ~ 5.25V - 2V ~ 3.6V
