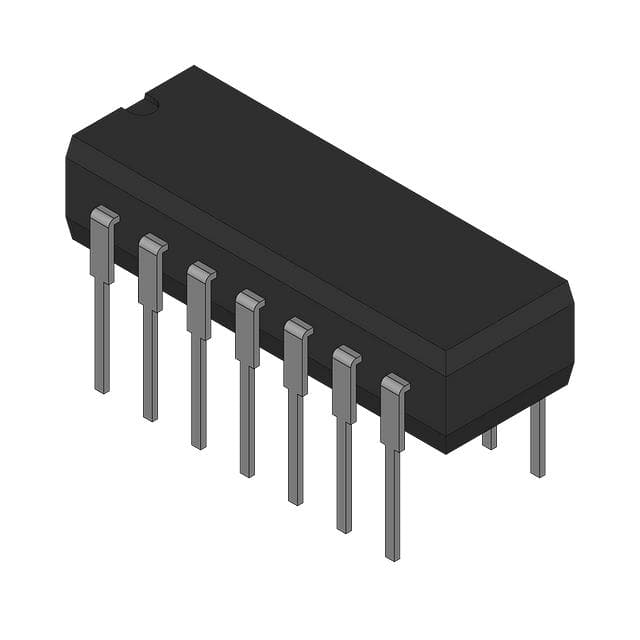

74VHC125N Image Image may be representation.
See specs for product details.
74VHC125NFairchild Semiconductor IC BUFFER NON-INVERT 5.5V 14DIP
Part Number74VHC125N
Package14-DIP (0.300", 7.62mm)
ManufacturerFairchild (onsemi)
RoHs StatusROHS3 Compliant
Manufacturer Part NumberFairchild Semiconductor-74VHC125N
DescriptionIC BUFFER NON-INVERT 5.5V 14DIP
In stock128514
Data sheet
Please click " QUICK RFQ " and provide your contact information,
or email us at [email protected].
We will respond promptly to your inquiry.
In stock: 128514 pcs Required fields are indicated by an asterisk ( * )

Please send RFQ, we will respond immediately.

  • Specifications
  • Product Details - 74VHC125N
  • 74VHC125N Tech Specifications
    Fairchild Semiconductor - 74VHC125N technical specifications, attributes, parameters and parts with similar specifications to Fairchild Semiconductor - 74VHC125N
    Manufacturer Fairchild (onsemi)
    Voltage - Supply 2V ~ 5.5V
    Supplier Device Package 14-DIP
    Series 74VHC
    Package / Case 14-DIP (0.300", 7.62mm)
    Package Tube
    Output Type 3-State
    Operating Temperature -40°C ~ 85°C (TA)
    Number of Elements 4
    Number of Bits per Element 1
    Mounting Type Through Hole
    Logic Type Buffer, Non-Inverting
    Input Type -
    Current - Output High, Low 8mA, 8mA
    Base Product Number 74VHC125
  • The74VHC125Nis a Integrated Circuits (ICs) component, full developed and mass-produced by Fairchild Semiconductor manufacturer, subject to rigorous quality control and successfully meeting production standards. The product description is IC BUFFER NON-INVERT 5.5V 14DIP and it falls under the category of Logic - Buffers, Drivers, Receivers, Transceivers, with Manufacturer of Fairchild (onsemi) and Voltage - Supply of 2V ~ 5.5V and Supplier Device Package of 14-DIP. Efficient purchasing through Fairchild-Stock.com. Here, you can find a wide variety of electronic components produced by manufacturers worldwide. If you do not find the information you are looking for, you can obtain more valuable information via email [email protected], such as stock quantities, special pricing, datasheets, and more details for 74VHC125N or order. We are always pleased to hear from you, so feel free to contact us at any time.

Product Comparison

Product Attribute 74VHC125N 74VHC125SJX 74VHC125MTCX 74VHC125SJ
Part Number 74VHC125N 74VHC125SJX 74VHC125MTCX 74VHC125SJ
Manufacturer Fairchild Semiconductor Fairchild Semiconductor Fairchild Semiconductor Fairchild Semiconductor
Mounting Type Through Hole Surface Mount Surface Mount Surface Mount
Operating Temperature -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA)
Package / Case 14-DIP (0.300", 7.62mm) 14-SOIC (0.209", 5.30mm Width) 14-TSSOP (0.173", 4.40mm Width) 14-SOIC (0.209", 5.30mm Width)
Series 74VHC 74VHC 74VHC 74VHC
Number of Bits per Element 1 1 1 1
Base Product Number 74VHC125 74VHC125 74VHC125 74VHC125
Number of Elements 4 4 4 4
Input Type - - - -
Voltage - Supply 2V ~ 5.5V 2V ~ 5.5V 2V ~ 5.5V 2V ~ 5.5V
Current - Output High, Low 8mA, 8mA 8mA, 8mA 8mA, 8mA 8mA, 8mA
Package Tube Bulk Bulk Tube
Logic Type Buffer, Non-Inverting Buffer, Non-Inverting Buffer, Non-Inverting Buffer, Non-Inverting
Output Type 3-State 3-State 3-State 3-State
Supplier Device Package 14-DIP 14-SOP 14-TSSOP 14-SOP
