HomeProductsIntegrated Circuits (ICs)PMIC - Voltage Regulators - LinearFAN1581DX

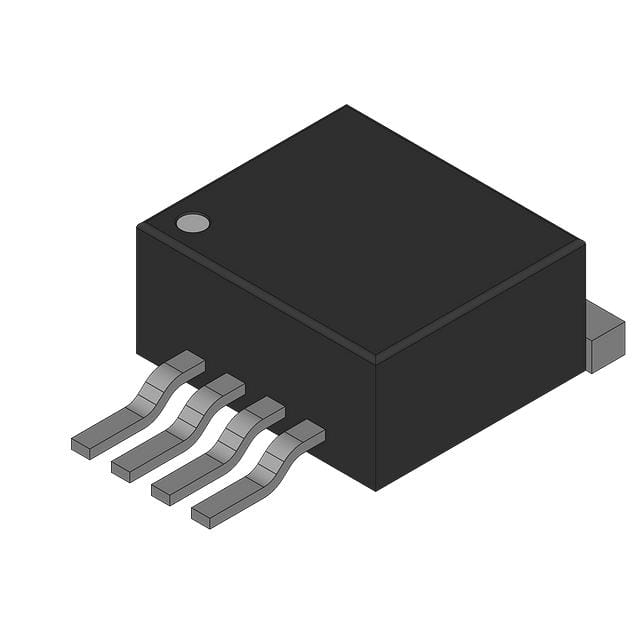

FAN1581DX Image Image may be representation.
See specs for product details.
FAN1581DXFairchild Semiconductor IC REG LINEAR POS ADJ 5A TO252-5
Part NumberFAN1581DX
PackageTO-252-5, DPak (4 Leads + Tab), TO-252AD
ManufacturerFairchild (onsemi)
RoHs StatusROHS3 Compliant
Manufacturer Part NumberFairchild Semiconductor-FAN1581DX
DescriptionIC REG LINEAR POS ADJ 5A TO252-5
In stock36793
Data sheet
Please click " QUICK RFQ " and provide your contact information,
or email us at [email protected].
We will respond promptly to your inquiry.
In stock: 36793 pcs Required fields are indicated by an asterisk ( * )

Please send RFQ, we will respond immediately.

  • Specifications
  • Product Details - FAN1581DX
  • FAN1581DX Tech Specifications
    Fairchild Semiconductor - FAN1581DX technical specifications, attributes, parameters and parts with similar specifications to Fairchild Semiconductor - FAN1581DX
    Manufacturer Fairchild (onsemi)
    Voltage Dropout (Max) 1.18V @ 5A
    Voltage - Output (Min/Fixed) 1.25V
    Voltage - Output (Max) 5.7V
    Voltage - Input (Max) 7V
    Supplier Device Package TO-252-5
    Series -
    Protection Features Over Current, Over Temperature
    Package / Case TO-252-5, DPak (4 Leads + Tab), TO-252AD
    Package Bulk
    PSRR 80dB (120Hz)
    Output Type Adjustable
    Output Configuration Positive
    Operating Temperature 0°C ~ 125°C
    Number of Regulators 1
    Mounting Type Surface Mount
    Current - Quiescent (Iq) 6 mA
    Current - Output 5A
    Control Features -
  • TheFAN1581DXis a Integrated Circuits (ICs) component, full developed and mass-produced by Fairchild Semiconductor manufacturer, subject to rigorous quality control and successfully meeting production standards. The product description is IC REG LINEAR POS ADJ 5A TO252-5 and it falls under the category of PMIC - Voltage Regulators - Linear, with Manufacturer of Fairchild (onsemi) and Voltage Dropout (Max) of 1.18V @ 5A and Voltage - Output (Min/Fixed) of 1.25V. Efficient purchasing through Fairchild-Stock.com. Here, you can find a wide variety of electronic components produced by manufacturers worldwide. If you do not find the information you are looking for, you can obtain more valuable information via email [email protected], such as stock quantities, special pricing, datasheets, and more details for FAN1581DX or order. We are always pleased to hear from you, so feel free to contact us at any time.

Product Comparison

Product Attribute FAN1581D15X FAN1581D25X FAN1581M12X FAN1581M15X
Part Number FAN1581D15X FAN1581D25X FAN1581M12X FAN1581M15X
Manufacturer Fairchild Semiconductor Fairchild Semiconductor Fairchild Semiconductor Fairchild Semiconductor
Voltage - Input (Max) - - - -
Current - Quiescent (Iq) - - - -
PSRR - - - -
Current - Output - - - -
Output Configuration - - - -
Package / Case - - - -
Series - * * *
Voltage - Output (Min/Fixed) - - - -
Operating Temperature - - - -
Control Features - - - -
Output Type - - - -
Mounting Type - - - -
Voltage Dropout (Max) - - - -
Protection Features - - - -
Number of Regulators - - - -
Supplier Device Package - - - -
Package - Bulk Bulk Bulk
Voltage - Output (Max) - - - -
