HomeProductsIntegrated Circuits (ICs)PMIC - Power Distribution Switches, Load DriversFDZ1040L

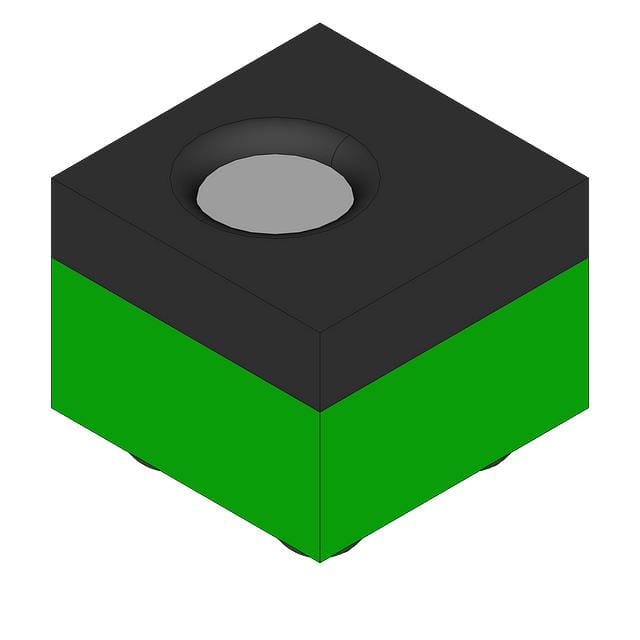

FDZ1040L Image Image may be representation.
See specs for product details.
FDZ1040LFairchild Semiconductor SPST
Part NumberFDZ1040L
Package4-UFBGA, WLCSP
ManufacturerFairchild (onsemi)
RoHs StatusROHS3 Compliant
Manufacturer Part NumberFairchild Semiconductor-FDZ1040L
DescriptionSPST
In stock74914
Data sheet
Please click " QUICK RFQ " and provide your contact information,
or email us at [email protected].
We will respond promptly to your inquiry.
In stock: 74914 pcs Required fields are indicated by an asterisk ( * )

Please send RFQ, we will respond immediately.

  • Specifications
  • Product Details - FDZ1040L
  • FDZ1040L Tech Specifications
    Fairchild Semiconductor - FDZ1040L technical specifications, attributes, parameters and parts with similar specifications to Fairchild Semiconductor - FDZ1040L
    Manufacturer Fairchild (onsemi)
    Voltage - Supply (Vcc/Vdd) Not Required
    Voltage - Load 1V ~ 4V
    Switch Type General Purpose
    Supplier Device Package 4-WLCSP (0.8x0.8)
    Series -
    Rds On (Typ) 48mOhm
    Ratio - Input:Output 1:1
    Package / Case 4-UFBGA, WLCSP
    Package Bulk
    Output Type P-Channel
    Output Configuration High Side
    Operating Temperature -40°C ~ 85°C (TA)
    Number of Outputs 1
    Mounting Type Surface Mount
    Interface On/Off
    Input Type Non-Inverting
    Features Load Discharge
    Fault Protection -
    Current - Output (Max) 1.2A
    Base Product Number FDZ1040
  • TheFDZ1040Lis a Integrated Circuits (ICs) component, full developed and mass-produced by Fairchild Semiconductor manufacturer, subject to rigorous quality control and successfully meeting production standards. The product description is SPST and it falls under the category of PMIC - Power Distribution Switches, Load Drivers, with Manufacturer of Fairchild (onsemi) and Voltage - Supply (Vcc/Vdd) of Not Required and Voltage - Load of 1V ~ 4V. Efficient purchasing through Fairchild-Stock.com. Here, you can find a wide variety of electronic components produced by manufacturers worldwide. If you do not find the information you are looking for, you can obtain more valuable information via email [email protected], such as stock quantities, special pricing, datasheets, and more details for FDZ1040L or order. We are always pleased to hear from you, so feel free to contact us at any time.

Product Comparison

Product Attribute FDZ1040L FDZ2040L FDZ1905PZ FDZ372NZ
Part Number FDZ1040L FDZ2040L FDZ1905PZ FDZ372NZ
Manufacturer Fairchild Semiconductor Fairchild Semiconductor Fairchild Semiconductor Fairchild Semiconductor
Switch Type General Purpose General Purpose - -
Features Load Discharge Load Discharge - -
Base Product Number FDZ1040 FDZ2040 FDZ1905 -
Interface On/Off On/Off - -
Current - Output (Max) 1.2A 1.2A - -
Fault Protection - - - -
Operating Temperature -40°C ~ 85°C (TA) -25°C ~ 75°C (TA) -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ)
Output Configuration High Side High Side - -
Package / Case 4-UFBGA, WLCSP 4-UFBGA, WLCSP 6-UFBGA, WLCSP 4-XFBGA, WLCSP
Rds On (Typ) 48mOhm 47mOhm - -
Supplier Device Package 4-WLCSP (0.8x0.8) 4-WLCSP (0.8x0.8) 6-WLCSP (1x1.5) 4-WLCSP (1x1)
Input Type Non-Inverting Non-Inverting - -
Voltage - Load 1V ~ 4V 1.6V ~ 4V - -
Series - - PowerTrench® PowerTrench®
Package Bulk Bulk Bulk Bulk
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Output Type P-Channel P-Channel - -
Voltage - Supply (Vcc/Vdd) Not Required Not Required - -
Number of Outputs 1 1 - -
Ratio - Input:Output 1:1 1:1 - -
