Name: Fairchild Semiconductor HMA2701V
Brand: Fairchild Semiconductor
SKU: HMA2701V
Availability: InStock

Specifications
Product Details - HMA2701V

HMA2701V Tech Specifications
Fairchild Semiconductor - HMA2701V technical specifications, attributes, parameters and parts with similar specifications to Fairchild Semiconductor - HMA2701V

Manufacturer Fairchild (onsemi)

Voltage - Output (Max) 40V

Voltage - Isolation 3750Vrms

Voltage - Forward (Vf) (Typ) 1.3V (Max)

Vce Saturation (Max) 300mV

Turn On / Turn Off Time (Typ) -

Supplier Device Package 4-SMD

Series -

Rise / Fall Time (Typ) 3µs, 3µs

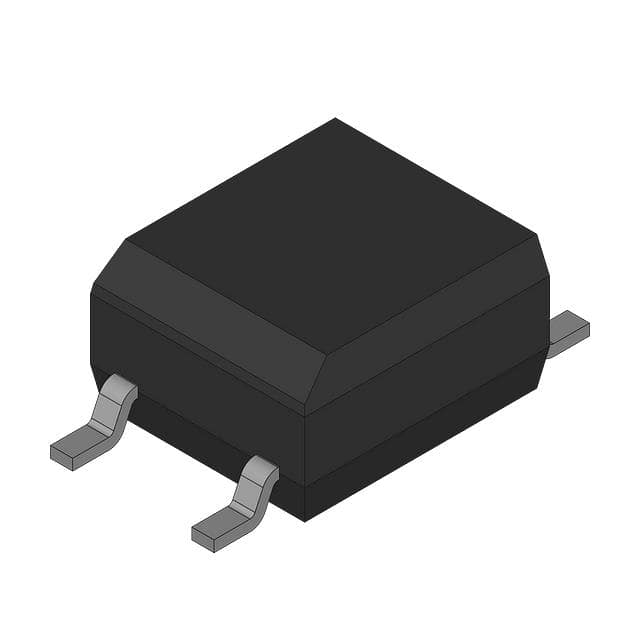

Package / Case 4-SMD, Gull Wing

Package Box

Output Type Transistor

Operating Temperature -40°C ~ 100°C

Number of Channels 1

Mounting Type Surface Mount

Input Type DC

Current Transfer Ratio (Min) 50% @ 5mA

Current Transfer Ratio (Max) 300% @ 5mA

Current - Output / Channel 80mA

Current - DC Forward (If) (Max) 50 mA
TheHMA2701Vis a Isolators component, full developed and mass-produced by Fairchild Semiconductor manufacturer, subject to rigorous quality control and successfully meeting production standards. The product description is TRANSISTOR OUTPUT OPTOCOUPLER and it falls under the category of Optoisolators - Transistor, Photovoltaic Output, with Manufacturer of Fairchild (onsemi) and Voltage - Output (Max) of 40V and Voltage - Isolation of 3750Vrms. Efficient purchasing through Fairchild-Stock.com. Here, you can find a wide variety of electronic components produced by manufacturers worldwide. If you do not find the information you are looking for, you can obtain more valuable information via email [email protected], such as stock quantities, special pricing, datasheets, and more details for HMA2701V or order. We are always pleased to hear from you, so feel free to contact us at any time.

Product Comparison

Product Attribute
Part Number	HMA2701B	HMA2701BR1	HMA121V	HMA124R1V
Manufacturer	Fairchild Semiconductor	Fairchild Semiconductor	Fairchild Semiconductor	Fairchild Semiconductor
Voltage - Isolation	-	-	-	-
Output Type	-	-	-	-
Number of Channels	-	-	-	-
Vce Saturation (Max)	-	-	-	-
Supplier Device Package	-	-	-	-
Current - Output / Channel	-	-	-	-
Voltage - Output (Max)	-	-	-	-
Rise / Fall Time (Typ)	-	-	-	-
Current Transfer Ratio (Max)	-	-	-	-
Turn On / Turn Off Time (Typ)	-	-	-	-
Voltage - Forward (Vf) (Typ)	-	-	-	-
Input Type	-	-	-	-
Series	-	*	*	*
Current - DC Forward (If) (Max)	-	-	-	-
Package / Case	-	-	-	-
Operating Temperature	-	-	-	-
Mounting Type	-	-	-	-
Package	-	Bulk	Bulk	Bulk
Current Transfer Ratio (Min)	-	-	-	-
